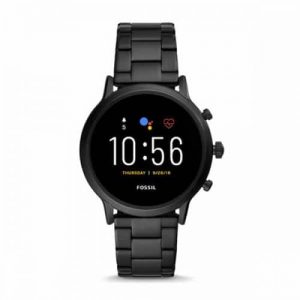

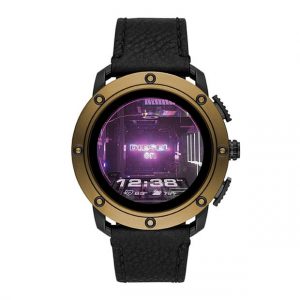

| Product Name | Diesel On AxialFossil The Carlyle HR Gen 5 |
| Product Image | ![]() ![]() |
| Price | |
| Our Rating | |
| Brand | Diesel Fossil |
| Category | Smartwatch Smartwatch |
| Release | September, 2019 August, 2019 |
| Device Name | Diesel On Gen 5 Axial HR Fossil The Carlyle HR Gen 5 |
| Device Type | Fitness Smartwatch Smartwatch |
| Ideal for (Gender) | Both Men & Women Both Men & Women |
| Device Model | DZT2014, DZT2015, DZT2016, DZT2017 FTW4037SETP |
| Box Items | Diesel Axial Smartwatch, Straps, Charging Cradle and USB Cable, Quick Start Guide Watch, Magnetic USB Charger, Quick Start Guide |
| Predecessor | - |
| Shape | Circular Circular |
| Case Dimensions | 48 x 48 x 10 mm (1.89 x 1.89 x 0.39 in) 44 x 44 x 12 mm (1.72 x 1.72 x 0.47 in) |
| Case/Bezel | Stainless steel Stainless Steel |
| Strap Material | Stainless Steel, Leather, Denim Stainless Steel |
| Strap/Band Size | 22 mm 22 mm |
| Replaceable Band | Interchangeable Yes |
| Weight | 12.91 oz - |
| IP Rating | - - |
| Water Resistance | 5 ATM up-to 50 meters 3 ATM (Swim-ready, up to 30 m) |
| Colors | Black, Gold, Blue, Gunmetal Black |
| Other Information | Closure: Single Pusher Foldover Clasp Strap Color: Black Circumference: 215+/- 5mm |
| Type | AMOLED AMOLED |
| Screen Size | 1.28 inch 1.28 inch |
| Screen Resolution | 416 x 416 pixels 416 x 416 Pixels |
| Pixel Density | - - |
| Multi Touch | Yes Yes |
| Screen Protection | Corning Gorilla Glass - |
| Operating System | Wear OS by Google Wear OS by Google |
| Chipset | Qualcomm Snapdragon Wear 3100 Qualcomm Snapdragon Wear 3100 |
| CPU | ARM Cortex A7, Quad-core Quad-core Cortex A7 |
| GPU | Adreno 304 Adreno 304 GPU |
| RAM | 1GB 1GB |
| Internal Memory | 8GB 8GB |
| SD Card Slot | No No |
| Technology | No No |
| SIM | No No |
| Distance | Yes Yes |
| Heart Rate | Yes Yes |
| Steps | Yes Yes |
| Calories Consumption | Yes - |
| Sleep | No Yes |
| Bluetooth | Bluetooth 4.2 LE Bluetooth Smart Enabled / 4.2 Low Energy |
| GPS | Yes Untethered GPS |
| WiFi | Wi-Fi b/g/n Wi-Fi 802.11 b/g/n |
| NFC | Yes Yes |
| USB | No - |
| Radio | No No |
| Touch | Yes Yes |
| Watchface | Customizable Customizable |
| Voice Command | Yes Yes |
| Personal Assistant | Google Assistant Google Assistant |
| Smartphone Compatibility | Android OS 6.0+ or iOS 10+ Android OS 6.0+, iOS 10+ |
| Smartphone Companion App | Android Wear Fossil Q App, Android Wear |
| Activity Alert | Yes Yes |
| SMS | Yes Yes |
| Yes Yes | |
| Incoming Call Alert | Yes Yes |
| Calendar Reminder | Yes Yes |
| Weather Forecast | Yes Yes |
| Accelerometer | Yes Yes |
| Gyro | Yes Yes |
| Heart Rate | Yes Yes |
| Light | Yes Yes |
| Compass/Magnetometer | Yes Yes |
| Vibration/Haptics engine | Yes Yes |
| Speaker | Yes Yes |
| Microphone | Yes Yes |
| Battery Type | Lithium-ion Lithium-ion |
| Capacity | 300mAh 310mAh |
| Battery Life | 2 Days 1 Day+ |
| Standby | Multiple Days Smart Multi Day Modes |
| Talk-Time | - - |
| Wireless Charging | No Inductive Charging Magnet |
| Charging Time | 1-2 hours Up to 80% in 1 hour with rapid charging |
| Quick Charging | Yes Yes |
| Language | Multilingual Multilingual |
| App Store | Google Play Google Play |
| Builtin Payment Service | Google Pay Google Pay |
| Bluetooth Music | Yes Yes |
